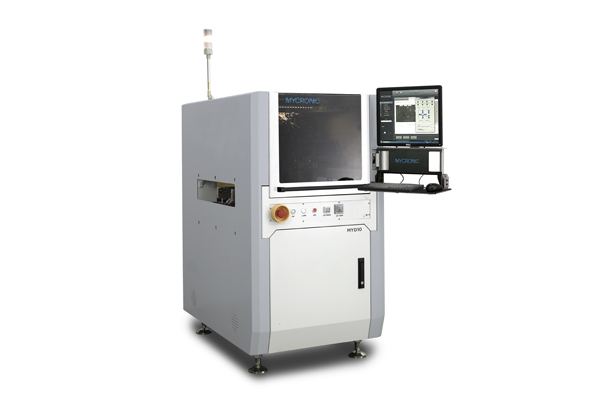

MYD10X

Compact design inline precision dispensing system

The MYSmart series offers a wide range of in-line dispense solutions together with a comprehensive portfolio of valve technologies. The MYSmart in-line dispensing solutions, proven in the most advanced production environments, make it possible to handle a vast array of current and emerging products, assembly fluids and package types. Key applications are in consumer electronics such as Hot melt, Underfill, Pin encapsulation, Edge/corner bonding, Surface mount package, Package on package, Dam and fill, SMA, FPC component and Reinforcement materials etc.

//这里有一个验证会员是否登录的判断

Download

Product Features

FLEXIBLE

MYD series can handle different substrate sizes and compositions to meet specific process requirements.

Numerous applications can be achieved with optional features such as tilt and rotate, contact

and non-contact heating and dual head configurations.

COST-EFFICIENT

Smaller machine dimensions, high-quality build and streamlined mechanical design allow the system to

run for longer periods of time with less maintenance and lower downtimes. Our Piezo Jetting technology

has been designed with a reduced number of wear parts, further reducing the cost of ownership making

the MYD series a cost-effective dispensing solution.

IMPROVED PRODUCTIVITY

Precise temperature controls, on-the-fly fiducial search, robust vision algorithms, low motion Z axis

and non-contact dispensing are some feautures to increase productivity.

KEY APPLICATIONS, CONSUMER ELECTRONICS

• Hot melt • Underfill • Pin encapsulation • Edge/corner bonding • Surface mount package

• Package on package • Dam and fill • SMA • FPC component • Reinforcement materials

Specifications


Specification	MYD10X
Power supply	AC 200~240V,2.5kW,11A,50/60Hz
Air supply	90psi(6bar)
Dimension	770x1200x1450mm(WxDxH)
Weight	650kg
Standard compliance	CE
Dispense area
Max dispensing area (single lane/dual lane)	350x475mm/350x210mm(WxD）
Synchronized dual valve – automatic adjustment (single lane/dual lane)	320x420mm/320x172mm(WxD）
Asynchronized dual valve (single lane/dual lane)	290x450mm/290x197mm(WxD）
Tilt & rotation (single lane/dual lane)	270x420mm/270x182mm(WxD）
