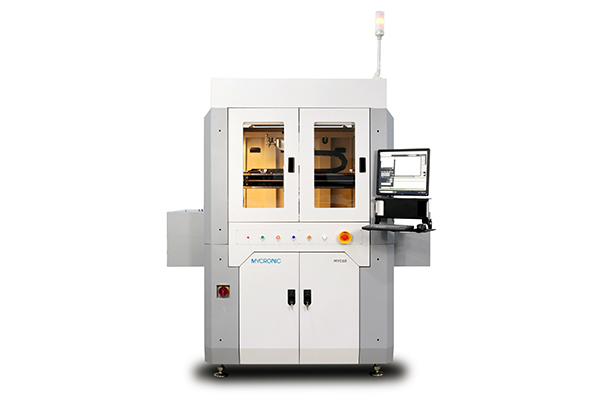

MYC60

axxon's premium industrial disperser for automated seal bond assembly

Applications such as potting, THT-bonding, gasketing and dispensing of thermal interface materials are some of the capabilities provided by MYC60.industrial dispensing-600x.jpg

//这里有一个验证会员是否登录的判断 Download

Product Features

As an industry leader in precision jetting, dispensing and coating solutions, Axxon Mycronic has long been at the forefront of industrial automation in electronics protection. The MYC60 takes these capabilities to a new level, giving manufacturers a versatile, customizable platform for high-volume dispensing of nearly any 1K or 2K material.

Whether you’re producing automotive assemblies, 5G infrastructure or aerospace electronics, the MYC60 offers an all-in-one solution for all your medium- to high-volume dispensing, positive displacement, progressive cavity and process control demands.

Inline or batch configurations. Complete with a wide range of conveyors, trolley and robotic integration options. Whatever your application is, the MYC60 offers the latest process controls together with the quality and flexibility Axxon Mycronic is known for.

MYC60 comes complete with a wide range of conveyors, trolley and robotic integration options for inline or batch configurations. Whatever the application, the MYC60 offers the latest process controls together with the quality and flexibility Axxon Mycronic is known for.



Specifications

MOTION SYSTEM

Z-axis repeatability

±25um@3σ

X-Y repeatability

±25um@3σ

X-Y acceleration

0.8 g peak

X-Y velocity

800 mm/s peak

Z travel

120mm. actual Z travel depends on valve and fluid reservoir configuration

Drive system

AC servo motor with precise ball screw

DISPENSING AREA

MYC60

1-part pumps: 650x500x120mm(XxYxZ)

2-part pumps (V): 450x400x120mm(XxYxZ)

MYC60 PRO

1-part pumps: 1,000x600x220mm(XxYxZ)

2-part pumps (V): 700x600x220mm(XxYxZ)

BOARD HANDLING

Max. top clearance

230 mm

Max. bottom clearance

130 mm

Load capacity

30kg with standard conveyor

FACILITIES REQUIREMENTS

System footprint MYC60(WxDxH)

1,831x1,310x1,880mm

VISION AND LIGHTING

Camera resolution

1.3M pixels

Field of view

14.0 x 11.0 mm

Lighting

Ring Light or Red/Green/White LEDs
